Place of Origin:
Qingdao, China
Brand Name:
Rhino Stone Tech
Model Number:
Rhino700-EH1

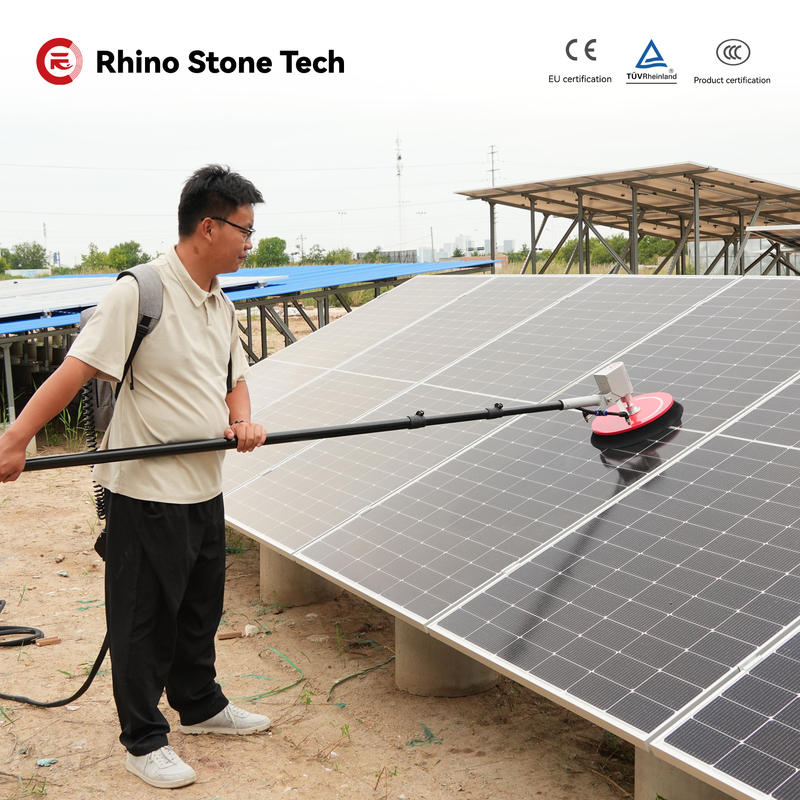

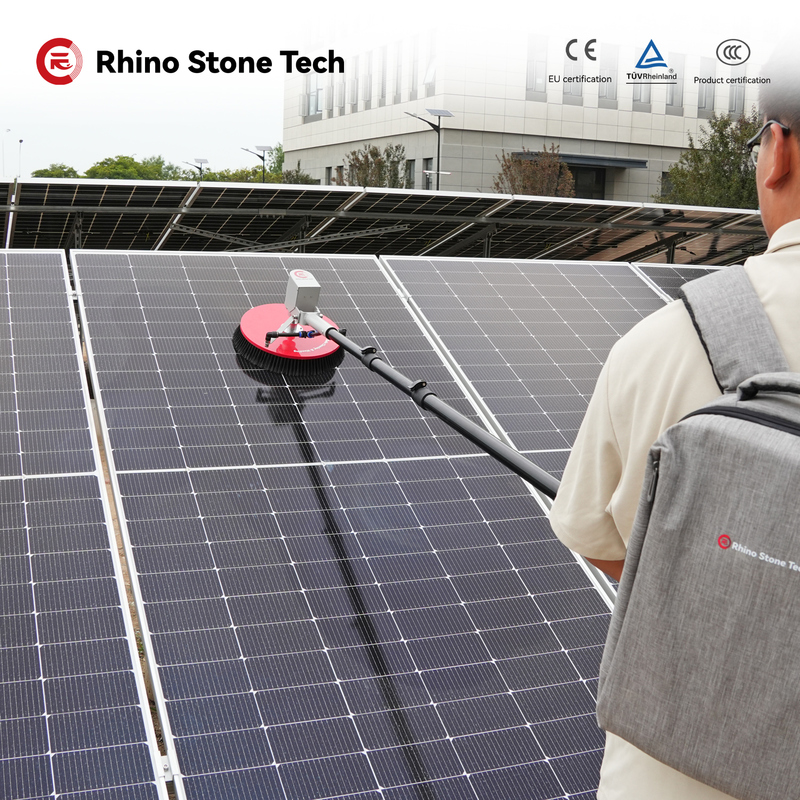

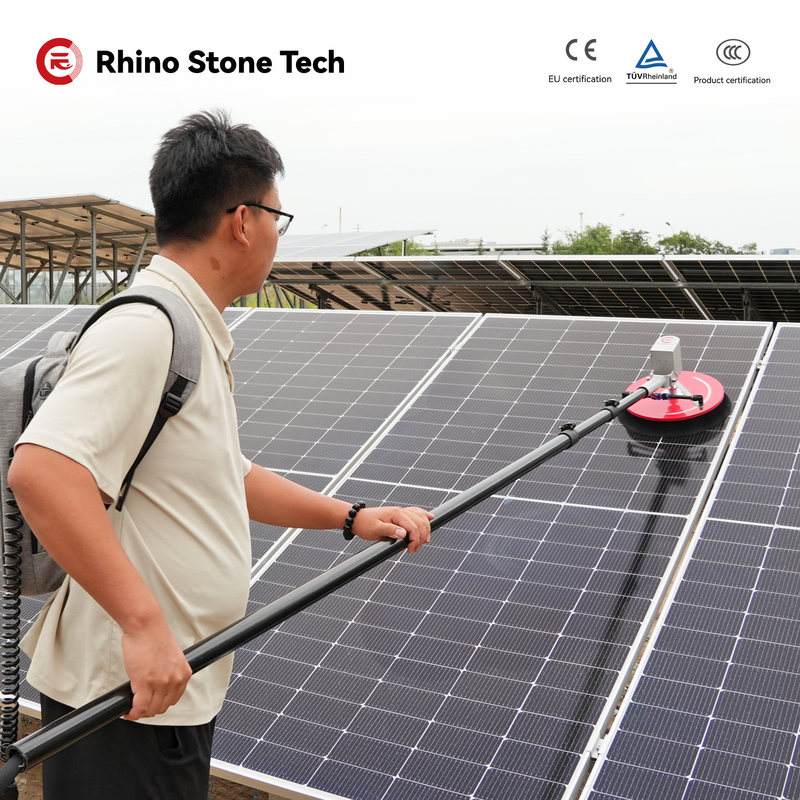

Efficiency Adjustable Single Head Solar Panel Cleaning Brush Carbon Fiber Telescopic Pole
Perfect for solar panel cleaning and other related tasks, our Cleaning Brush is offered in three practical versions to cater to different user demands:
1.Plug-in Type
2.Lithium Battery-Powered Type
3.Dual-Function Type (combining the functional advantages of the two aforementioned versions)
To boost user-friendliness, we supply our customers with telescopic poles crafted from either carbon fiber or aluminum alloy. These poles are developed with top-tier performance as the core goal, delivering outstanding sturdiness and long-lasting reliability.
Taking into account the various configurations of solar panels, our telescopic poles come in three length choices: 3.6 meters, 5.4 meters, and 7.5 meters. This ensures an ideal fit for different installation scenarios.
Our carbon fiber and aluminum alloy telescopic poles have a broad range of application situations, and we also provide customization services to modify product specifications according to your specific needs, guaranteeing that your projects attain optimal operational efficiency.
Key Features
1.Weight: The lightweight design eases user tiredness, making it highly appropriate for prolonged use.
2.Material: High-quality carbon fiber is adopted to make the handle, which not only offers excellent rigidity but also keeps the weight extremely low.

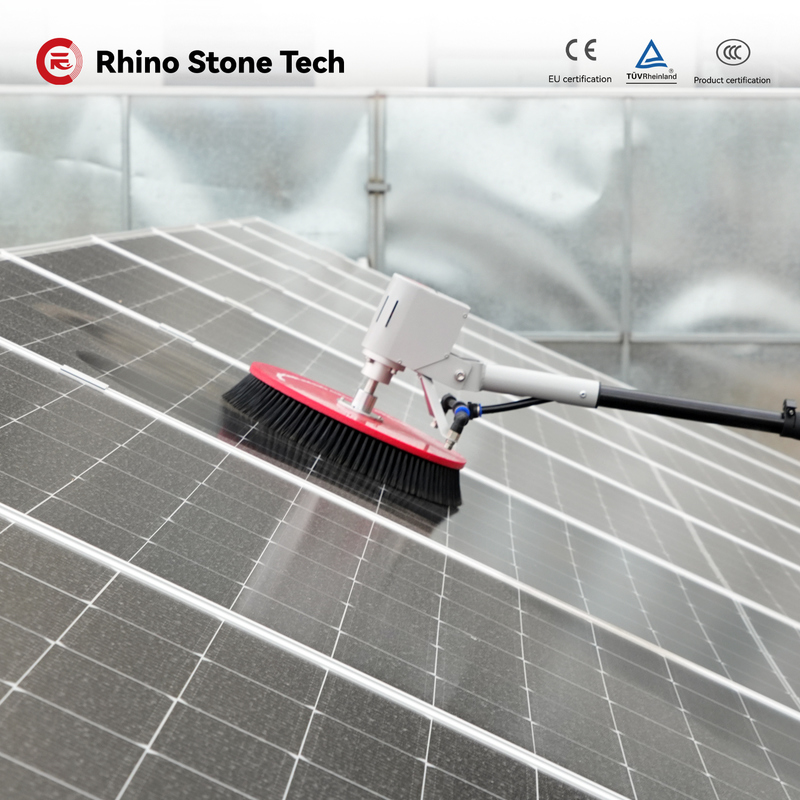

3.Efficiency: The rotating brush head enables fast removal of stubborn stains. Besides, the anti-static design of the brush bristles minimizes the risk of secondary dust pollution to the lowest level.
4.Length & Extension: The length is fully adjustable, and the smooth telescopic movement allows for flexible reach and convenient compact storage.
5.Durability: The carbon fiber structure possesses anti-static properties and strong resistance to corrosion, UV rays, and severe environmental conditions.
6.Design: Thanks to its modular structure, the brush head can be replaced rapidly.
5 Outstanding Advantages
1.Overall Lightweight Design:
The single-disc structure endows the product with a compact size and light weight. This overall lightweight design makes operation more labor-saving, easy, and flexible, allowing it to handle complex photovoltaic array layouts effortlessly. It is an ideal option for users pursuing extreme lightness and flexible operation.
2.IP65-Rated Brushless Motor:
We carefully select brushless motors with an IP65 protection rating. The product adopts a fully encapsulated solution using thermally conductive epoxy resin, which balances heat dissipation and waterproof performance, ensuring it is not affected by harsh working environments. Compared with brushed motors, it operates more stably and has a service life 3-5 times longer, greatly reducing maintenance costs.
3.Dual Anti-Static Protection:
Anti-static nylon bristles are matched with anti-static carbon fiber telescopic poles to form a dual static elimination system. This system can effectively prevent the accumulation of static electricity, reduce the risk of electrostatic discharge, and ensure the safety of workers. It is especially suitable for dry and dusty environments.
(Note: Two pole materials are available—carbon fiber and aluminum alloy. This anti-static feature is only applicable to the carbon fiber version.)
4.Hassle-Free Long Battery Life:
The lithium battery-powered type is equipped with a large-capacity lithium battery, which can provide a battery life of up to 6 hours after a full charge. This makes it an excellent choice for long-term continuous operation in areas without power supply. It can also be connected to the mains for non-stop work, completely eliminating power anxiety.
5.Dual-Mode Efficient Cleaning:
The dry cleaning mode can efficiently remove floating dust and sand particles. As for the wet cleaning mode, it can be matched with multiple water supply solutions, enabling it to adapt effectively to complex environments such as mountains and deserts, and meet the high cleaning requirements of various scenarios.
| Product Name | Single Disc Solar Cleaning Brush RHINO700-EH1 | ||||
| Parameter Item | Product Model | ||||
| Plug-in Version | Lithium Battery Version | Dual-use Version | |||
| Power Supply | AC95V~264V;DC24V | Lithium Battery | AC95V~264V;DC24V or Lithium Battery | ||
| Motor Type | Brushless Motor | ||||
| Motor Speed | 360RPM | ||||
| Motor Voltage | DC 24V | ||||
| Telescopic Rod Material | Carbon Fiber | Aluminum Alloy | |||
| Telescopic Rod Wall Thickness | 1.2mm | 1mm | |||
| Number of Section | 3.6m | 2 | 3.6m | 3 | |
| 5.4m | 3 | 5.4m | 4 | ||
| 7.5m | 4 | 7.5m | 5 | ||
| Water Pipe Length | 20m (can be customized) | ||||
| Brush Hair Material | Anti-Static Nylon Yarn | ||||
| Cleaning Width | 340mm | ||||
| Lithium Battery Voltage | 24V | ||||
| Lithium Battery Capacity | 30AH | ||||
| Lithium Battery Charging Time | 4~6H | ||||
| Lithium Battery Life Per Full Charge | 5~6H | ||||
