High Pressure Module Cleaning Brush 1.6m 3.6m Solar Plate Washing

High Pressure Module Cleaning Brush 1.6m 3.6m Solar Plate Washing

module cleaning brush 1.6m

3.6m solar plate washing

high pressure module cleaning brush

Place of Origin:

Qingdao,Chengyang,Chian

Brand Name:

Rhino Stone Tech

Model Number:

Rhion 700-EH4

Chat Now
Request A Quote
Product Details
Water Pipe Length:
20m (can Be Customized)
Product:
Solar Panel Cleaning Brush
Brush Hair Material:
Anti-Static Nylon Yarn
Cleaning Width:
340mm
Lithium Battery Voltage:
24V
Lithium Battery Capacity:
30AH
Lithium Battery Charging Time:
4~6H
Lithium Battery Life Per Full Charge:
5~6H
Motor Speed:
360RPM
Motor Voltage:
DC 24V
Usage:
Cleaning
Application:
Solar Panel Cleaning
Highlight:

module cleaning brush 1.6m

,

3.6m solar plate washing

,

high pressure module cleaning brush

Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiable
Packaging Details
Standard Carton or Per Needed
Delivery Time
10-20 Days( Depending on the Order Size and Requirements)
Payment Terms
T/T,Western Union,Money Gram,Paypal,Alipay,L/C
Product Description

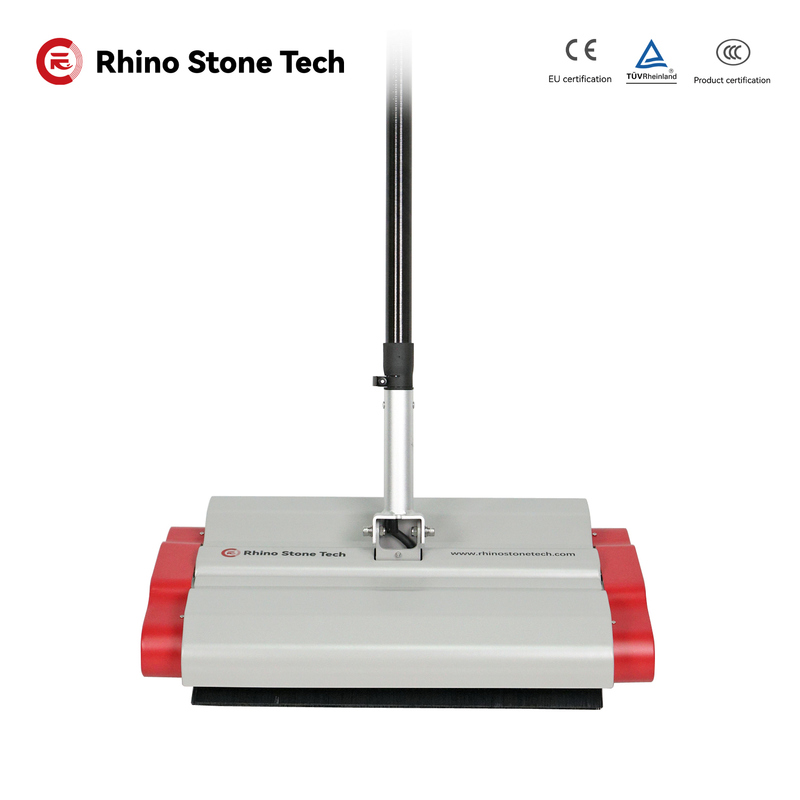

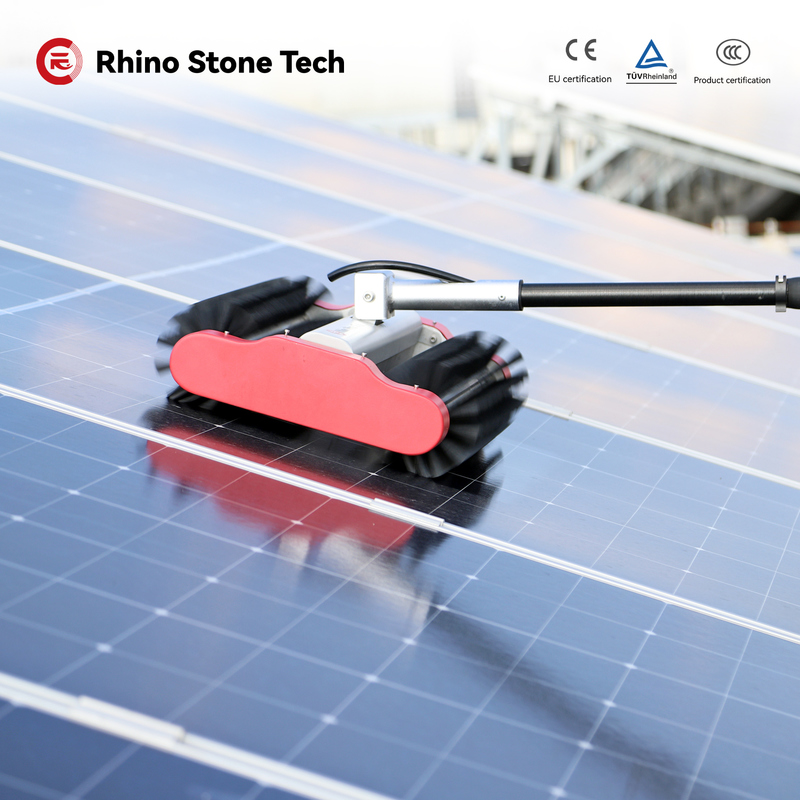

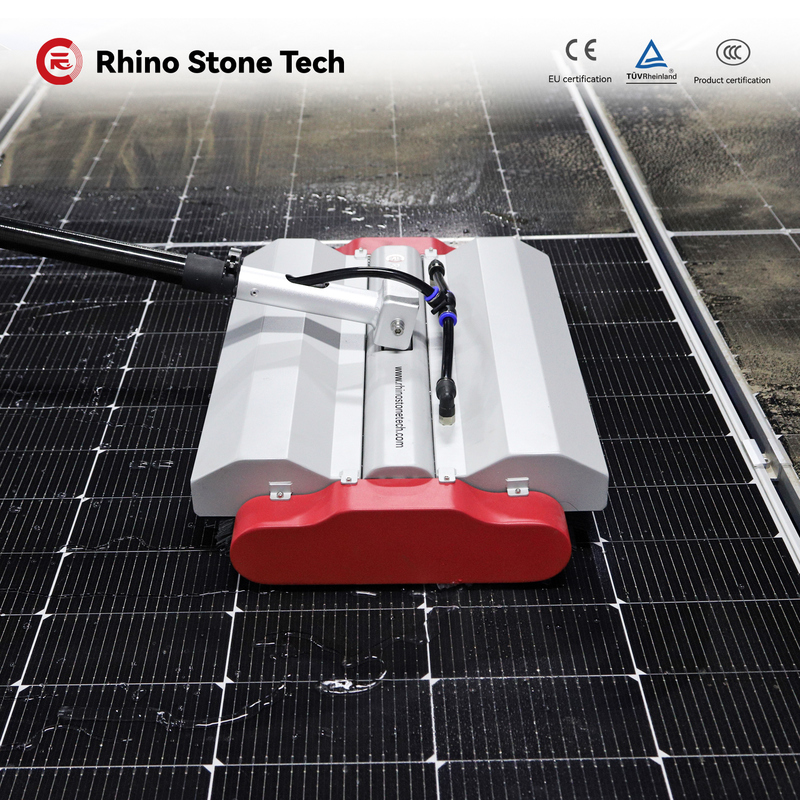

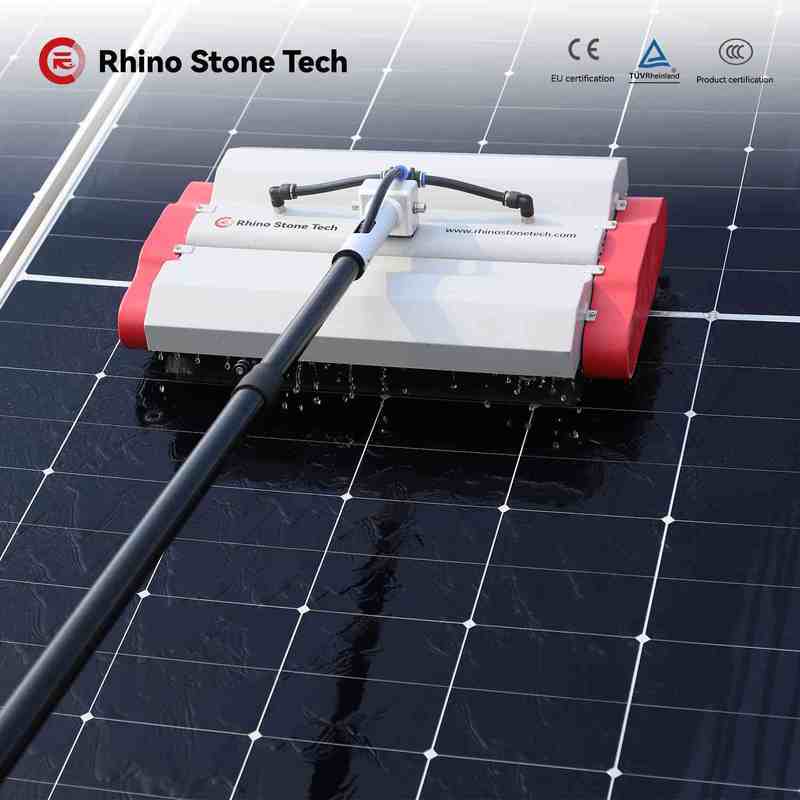

High Pressure Solar Cleaning Brush 3.6m Carbon Fiber Telescopic Rod

---------------------------

To meet the diverse demands of users, we’ve released three models of our Cleaning Brush:​
  Plug-in Style​
  Lithium Battery Style​
  Dual-Function Style (combining the functions of the two styles mentioned above)​
To ensure top-tier performance, strong structural stability, and a long service life, we provide customers with two types of telescoping poles: carbon fiber and aluminum alloy.​
Our telescoping poles are available in different lengths to fit various solar panel arrangements: carbon fiber poles are 3.6 meters in length, and aluminum alloy poles are 1.6 meters long.​
Suitable for a wide range of application scenarios—with solar panel cleaning as its main use—our carbon fiber and aluminum alloy telescoping poles can be customized according to your specific requirements, ensuring that your projects achieve the best possible performance.​

Features​
1.Efficiency: Different from traditional single-roller brush designs, our innovative dual-roller brush technology covers twice the cleaning area and enables synchronized high-efficiency cleaning, which significantly improves the overall cleaning result.​
2.Maneuverability: It is lighter and easier to operate than traditional single-roller brushes. Combined with a high-speed rotating brush head that guides the cleaner to move in multiple directions, users can easily control it just by adjusting the telescoping pole.​
3.Design: It adopts a modular design, allowing the brush head to be replaced quickly, which effectively reduces maintenance time.​
4.Material: The handle is made of high-quality carbon fiber, which ensures excellent hardness while keeping the weight extremely light.​
5.Length & Adjustment: The length is fully adjustable, and the extension and retraction process is smooth. This allows flexible access to different heights and convenient compact storage.​
6.Durability: The carbon fiber structure has anti-static properties and strong resistance to corrosion, ultraviolet rays, and harsh environmental conditions, which extends the product’s service life.​

5 Key Highlights​
1.Innovative Dual-Roller Brush Design​
It is equipped with front and rear counter-rotating dual-power roller brushes, which are precision-engineered to completely eliminate operational resistance. With one-way movement, it can easily achieve double the cleaning effect, making it perfect for long-term efficient single-person operation.​
2.630RPM Ultra-High Speed​
The motor can reach a maximum speed of 630 RPM. When matched with the innovative dual-roller brush structure, it not only removes dust effectively but also operates smoothly with little effort—significantly enhancing cleaning efficiency.​
3.Creative 3D Splash-Proof System​
The 3D waterproof cover system uses a diversion and sealing design, which can capture 98% of the water mist generated during operation. Compared with standard models, it reduces secondary pollution by about 90% and lowers the risk of operators being splashed with sewage.​
4.Flexible Choices of Pole Materials (2 Options)​
We offer carbon fiber telescoping poles (with lightweight, anti-static, and corrosion-resistant features) and newly upgraded aluminum alloy spliced poles (with high strength and durability). A variety of materials and specifications allow for flexible selection, easily meeting the cleaning needs of different heights and density layouts.​
5.Comprehensive Cleaning Modes​
It supports both dry and wet cleaning: it provides efficient dry cleaning results and strong cleaning power when connected to a water source. With excellent adaptability to various environments, it can offer the optimal cleaning solution in any situation.


Product Name Dual Roller Solar Cleaning Brush RHINO700-EH4
Parameter Item Product Model
Plug-in Version Lithium Battery Version Dual-use Version
Power Supply AC95V~264V;DC24V Lithium Battery  AC95V~264V;DC24V
or Lithium Battery
Motor Type Brushless Motor
Motor Speed 630RPM
Motor Voltage DC 24V
Telescopic Rod Material Carbon Fiber Aluminum Alloy
Telescopic Rod Wall Thickness 1.2mm 1mm
Number of Section 3.6m 2 1.6m 1
Water Pipe Length 20m (can be customized)
Brush Hair Material New Material Fiber
Cleaning Width 500mm
Lithium Battery Voltage 24V
Lithium Battery Capacity 30AH
Lithium Battery Charging Time  4~6H
Lithium Battery Life Per Full Charge 2~2.5H
