Place of Origin:
Qingdao, China
Brand Name:
Rhino Stone Tech
Model Number:
Rhino700-EH1

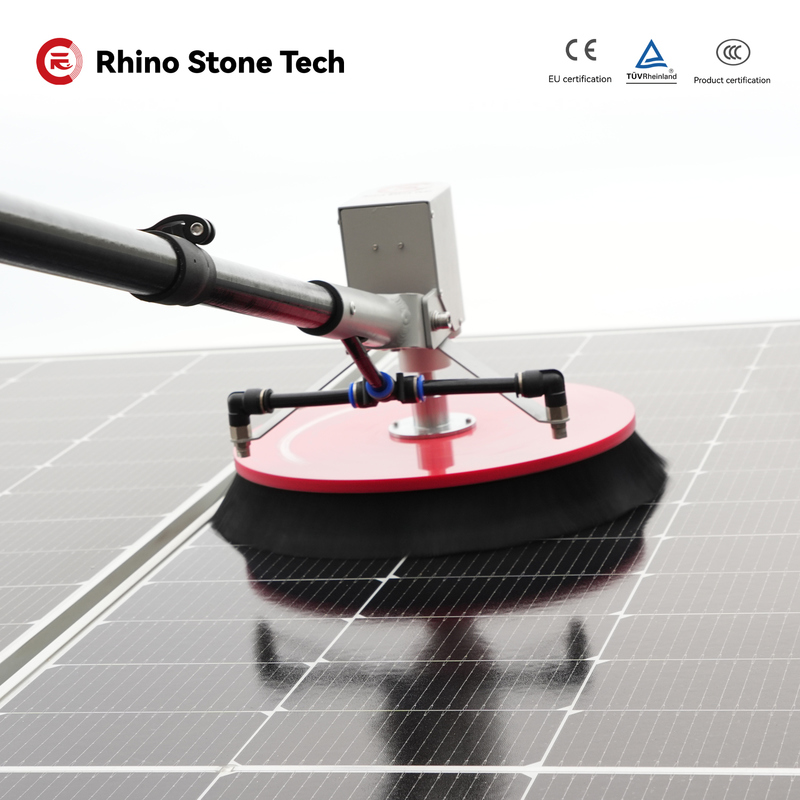

Efficiency Adjustable Single Head Solar Panel Cleaning Brush Carbon Fiber Telescopic Pole
Ideal for solar panel cleaning and other associated tasks, our Cleaning Brush is available in three practical models to satisfy diverse user needs:
1.Plug-in Model
2..Lithium Battery-Powered Model
3..Dual-Function Model (integrating the functional merits of the two models mentioned above)
To enhance usability, we provide customers with telescopic poles made from either carbon fiber or aluminum alloy. These poles are developed with top-notch performance as the core objective, offering excellent robustness and long-term dependability.
Considering the various configurations of solar panels, our telescopic poles are offered in three length options: 3.6 meters, 5.4 meters, and 7.5 meters. This ensures a perfect match for different installation situations.
Our carbon fiber and aluminum alloy telescopic poles have a wide range of application scenarios, and we also offer customization services to adjust product specifications based on your specific requirements, ensuring that your projects achieve optimal operational efficiency.
Key Features
1.Weight: The lightweight design reduces user fatigue, making it highly suitable for extended use.
2.Material: High-quality carbon fiber is used to manufacture the handle, which not only provides great rigidity but also keeps the weight extremely low.
3.Efficiency: The rotating brush head allows for quick removal of stubborn stains. Additionally, the anti-static design of the brush bristles reduces the risk of secondary dust pollution to the minimum.
4.Length & Extension: The length is fully adjustable, and the smooth telescopic movement enables flexible access to target areas and convenient compact storage.
5.Durability: The carbon fiber structure has anti-static properties and strong resistance to corrosion, UV radiation, and harsh environmental conditions.
6.Design: Due to its modular structure, the brush head can be replaced quickly.
5 Excellent Advantages
1.Overall Lightweight Design:
The single-disc structure gives the product a compact size and light weight. This overall lightweight design makes operation more labor-saving, easy, and flexible, allowing it to handle complex photovoltaic array layouts with ease. It is an ideal choice for users seeking extreme lightness and flexible operation.
2.IP65-Grade Brushless Motor:
We carefully select brushless motors with an IP65 protection rating. The product uses a fully encapsulated solution with thermally conductive epoxy resin, which balances heat dissipation and waterproof performance, ensuring it is not affected by harsh working environments. Compared with brushed motors, it runs more stably and has a service life 3-5 times longer, significantly cutting down maintenance costs.
3.Dual Anti-Static Protection:
Anti-static nylon bristles are paired with anti-static carbon fiber telescopic poles to form a dual static elimination system. This system can effectively prevent the buildup of static electricity, reduce the risk of electrostatic discharge, and ensure the safety of workers. It is particularly suitable for dry and dusty environments.
(Note: Two pole materials are available—carbon fiber and aluminum alloy. This anti-static feature only applies to the carbon fiber version.)
4.Trouble-Free Long Battery Life:
The lithium battery-powered model is equipped with a large-capacity lithium battery, which can provide a battery life of up to 6 hours after a full charge. This makes it an excellent option for long-term continuous operation in areas without power supply. It can also be connected to the mains for non-stop work, completely getting rid of power anxiety.
5.Dual-Mode Efficient Cleaning:
The dry cleaning mode can efficiently remove floating dust and sand particles. As for the wet cleaning mode, it can be combined with multiple water supply solutions, enabling it to adapt effectively to complex environments such as mountains and deserts, and meet the high cleaning demands of various scenarios.
| Product Name | Single Disc Solar Cleaning Brush RHINO700-EH1 | ||||
| Parameter Item | Product Model | ||||
| Plug-in Version | Lithium Battery Version | Dual-use Version | |||
| Power Supply | AC95V~264V;DC24V | Lithium Battery | AC95V~264V;DC24V or Lithium Battery | ||
| Motor Type | Brushless Motor | ||||
| Motor Speed | 360RPM | ||||
| Motor Voltage | DC 24V | ||||
| Telescopic Rod Material | Carbon Fiber | Aluminum Alloy | |||
| Telescopic Rod Wall Thickness | 1.2mm | 1mm | |||
| Number of Section | 3.6m | 2 | 3.6m | 3 | |
| 5.4m | 3 | 5.4m | 4 | ||
| 7.5m | 4 | 7.5m | 5 | ||
| Water Pipe Length | 20m (can be customized) | ||||
| Brush Hair Material | Anti-Static Nylon Yarn | ||||
| Cleaning Width | 340mm | ||||
| Lithium Battery Voltage | 24V | ||||
| Lithium Battery Capacity | 30AH | ||||
| Lithium Battery Charging Time | 4~6H | ||||
| Lithium Battery Life Per Full Charge | 5~6H | ||||
