Place of Origin:
Qingdao, China
Brand Name:
Rhino Stone Tech
Model Number:
Rhino700-EH2
Portable Solar Panel Cleaning Rolling Brush 3.6m 5.4m 7.5m Ensuring Photovoltaic Plants Optimal Performance
We provide three distinct classes of cleaning brushes to address the needs of different application scenarios:
1.Cord-Powered Operation Type
2.Lithium-Ion Battery-Driven Type
3.Versatile Type (combining the functional features of the two previously mentioned types)
We furnish our clients with telescopic poles manufactured from carbon fiber and aluminum alloy. These poles undergo professional engineering to deliver premium performance, along with remarkable strength and long-term sturdiness. To fit various solar panel installation layouts, our telescopic poles are available in multiple length choices: 3.6 meters, 5.4 meters, and 7.5 meters—all able to accurately meet a variety of demands.
Telescopic poles made from carbon fiber and aluminum alloy have an extremely broad range of uses, and solar panel cleaning is a prominent part of their key application areas. We can customize specification details based on the unique requirements of customers to help their projects reach optimal operational performance.
Key Product Attributes
1.Design Aspect: The adoption of a 5-petal brush head design greatly reduces the weight of the cleaning brush and significantly enhances energy efficiency. Tests have confirmed that this design has strong cleaning capabilities; meanwhile, the product uses a modular structure, allowing for quick replacement of the brush head.
2.Cleaning Effectiveness: The brush head is designed with bidirectional rotation, enabling the fast removal of stubborn stains. Moreover, the anti-static design of the brush bristles reduces secondary dust pollution to the maximum extent.
3.Material Choice: The handle is constructed from high-grade carbon fiber, which ensures excellent rigidity while greatly cutting down weight, achieving an ultra-lightweight result.
4.Weight Benefit: The lightweight design can reduce users' fatigue to the lowest level, making it highly suitable for long-hour operation scenarios.
5.Length & Telescopic Performance: The product’s length can be fully adjusted. The smooth telescopic operation not only makes it easy to flexibly reach the target cleaning area but also allows for compact storage when the product is not being used.
6.Durability: The carbon fiber structure naturally has anti-static properties; at the same time, it shows excellent corrosion resistance and UV resistance, and can work stably even in severe environments.
Five Core Advantages

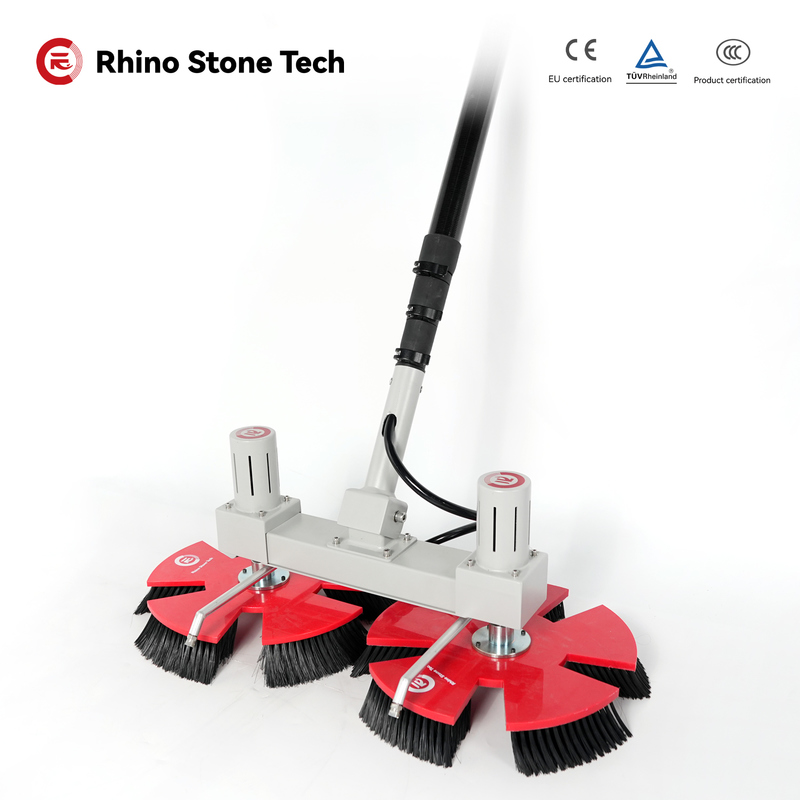

1.5-Petal Brush Head Design
With a unique 5-petal brush head structure, it is lighter in weight and uses less energy when compared to traditional disc-shaped brush heads. Tests have proven that it has obvious advantages in cleaning efficiency, making it an ideal option for single-person efficient cleaning of photovoltaic panels—especially suitable for large-scale solar power station scenarios.
2.Dual-Brush Balanced Power for Convenient Operation
It is equipped with an innovative dual brushless motor drive system, which not only greatly lowers operating resistance but also ensures the stable rotation of the dual discs. This design makes the equipment easier and more flexible to operate, reduces labor costs, and effectively improves cleaning efficiency, shortening the overall operation time.
3.Adjustable Brush Head Angle
The dual-disc brush head has a maximum adjustable angle of 90 degrees. Users can adjust the brush head angle according to actual needs while effectively expanding the cleaning scope. Besides, this design can also simplify the cleaning work for hard-to-reach hygiene blind spots on solar panels, such as the edges and corners of panel arrays.
4.Dual Anti-Static Protection
Anti-static nylon brush bristles are matched with anti-static carbon fiber telescopic poles to form a dual static elimination system. This system can effectively prevent the accumulation of static electricity, reduce the risk of electrostatic discharge, and ensure the safety of workers. It is particularly suitable for dry and dusty environments, like solar power plants in desert areas.
(Note: The telescopic poles come in two materials—carbon fiber and aluminum alloy. This anti-static function only applies to the carbon fiber version.)
5.Comprehensive Cleaning Modes
It supports two cleaning modes: dry cleaning and wet cleaning. In dry cleaning mode, it can efficiently remove daily light dust; when connected to a water source, it can produce strong cleaning power to easily handle hard-to-clean stains such as oil marks and hardened dust. The product has strong environmental adaptability and can provide the best cleaning solution in various environments, from indoor glass surfaces to outdoor solar panels.
| Product Name | Double Disc Solar Cleaning Brush RHINO700-EH2 | ||||
| Parameter Item | Product Model | ||||
| Plug-in Version | Lithium Battery Version | Dual-use Version | |||
| Power Supply | AC95V~264V;DC24V | Lithium Battery | AC95V~264V;DC24V or Lithium Battery | ||
| Motor Type | Brushless Motor | ||||
| Motor Speed | 360RPM | ||||
| Motor Voltage | DC 24V | ||||
| Telescopic Rod Material | Carbon Fiber | Aluminum Alloy | |||
| Telescopic Rod Wall Thickness | 1.2mm | 1mm | |||
| Number of Section | 3.6m | 2 | 3.6m | 3 | |
| 5.4m | 3 | 5.4m | 4 | ||
| 7.5m | 4 | 7.5m | 5 | ||
| Water Pipe Length | 20m (can be customized) | ||||
| Brush Hair Material | Anti-Static Nylon Yarn | ||||
| Cleaning Width | 690mm | ||||
| Lithium Battery Voltage | 24V | ||||
| Lithium Battery Capacity | 30AH | ||||
| Lithium Battery Charging Time | 4~6H | ||||
| Lithium Battery Life Per Full Charge | 3~3.5H | ||||
