Place of Origin:
Qingdao, China
Brand Name:
Rhino Stone Tech
Model Number:
Rhino700-EH2

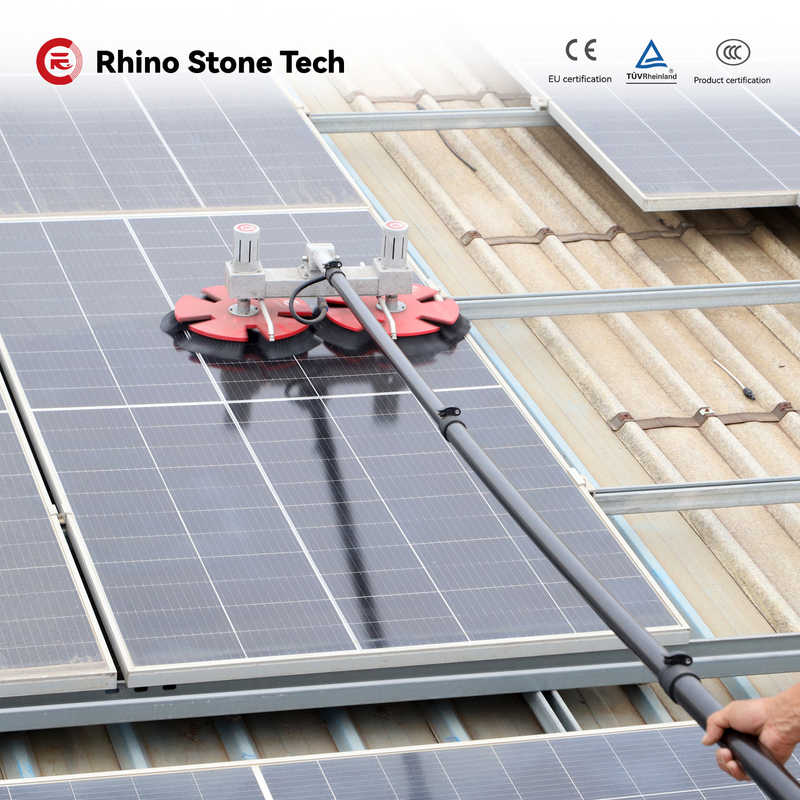

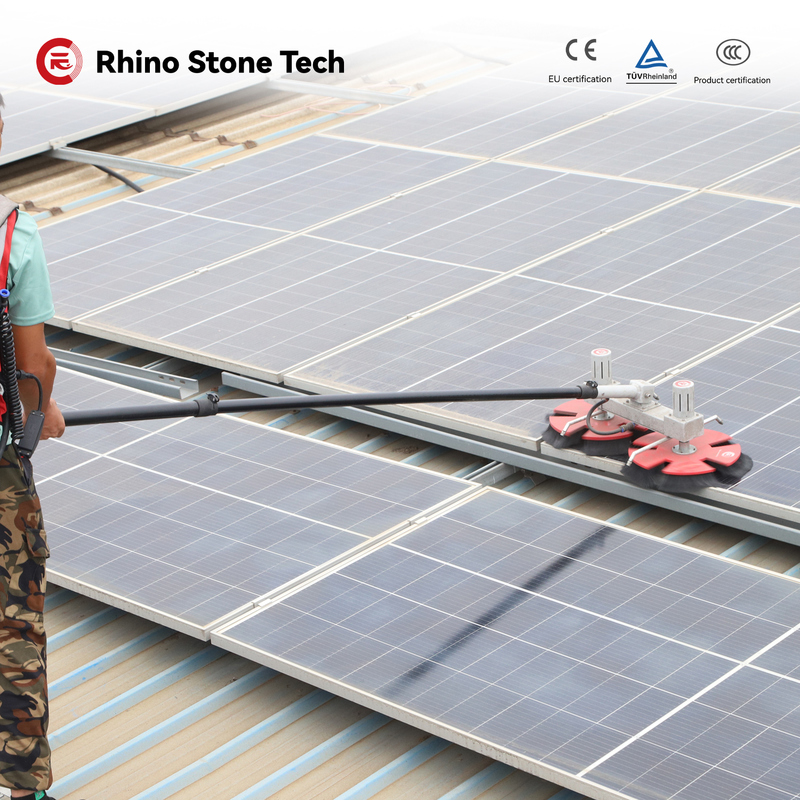

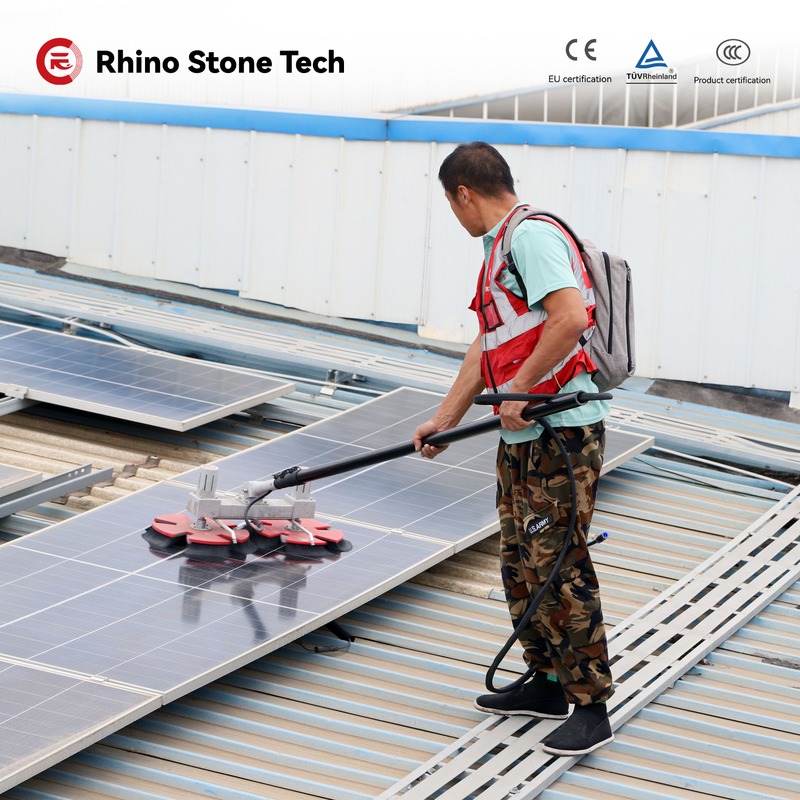

Carbon Fiber Rod Solar Panel System Cleaning Brushes Double Disc Powered Brush Systems
We provide three choices for our Cleaning Brush, as follows:
1.Plug-in Type
2.Lithium Battery Type
3.Dual-purpose Type (integrating the two types mentioned above)
To our clients, we offer telescopic rods made of carbon fiber and aluminum alloy. This design not only ensures excellent performance but also boasts remarkable strength and long-lasting durability.
These telescopic rods come in different lengths to fit various solar panel configurations, specifically 3.6 meters, 5.4 meters, and 7.5 meters.
Our carbon fiber and aluminum alloy telescopic rods are well-suited for a broad range of applications, and they are particularly ideal for solar panel cleaning. Moreover, we can customize the specifications according to your specific needs, guaranteeing optimal performance for your projects.
Key Features:
1.Design: The 5-petal brush structure makes the product much lighter and more energy-efficient. Tests have shown that it achieves high cleaning efficiency. With a modular design, the brush head can be replaced rapidly.
2.Efficiency: The bidirectional rotating brush head can quickly get rid of stubborn stains. Additionally, the anti-static design of the brush bristles helps reduce secondary dust pollution.
3.Material: The handle is made of high-quality carbon fiber, which ensures excellent rigidity while keeping the product extremely light.
4.Weight: The lightweight design lessens user fatigue, making it perfect for prolonged use.
5.Length & Extension: The length is fully adjustable, and the smooth telescopic adjustment allows for flexible reach and compact storage.
6.Durability: The carbon fiber structure has anti-static properties and offers great resistance to corrosion, UV radiation, and severe environmental conditions.
5 Outstanding Advantages

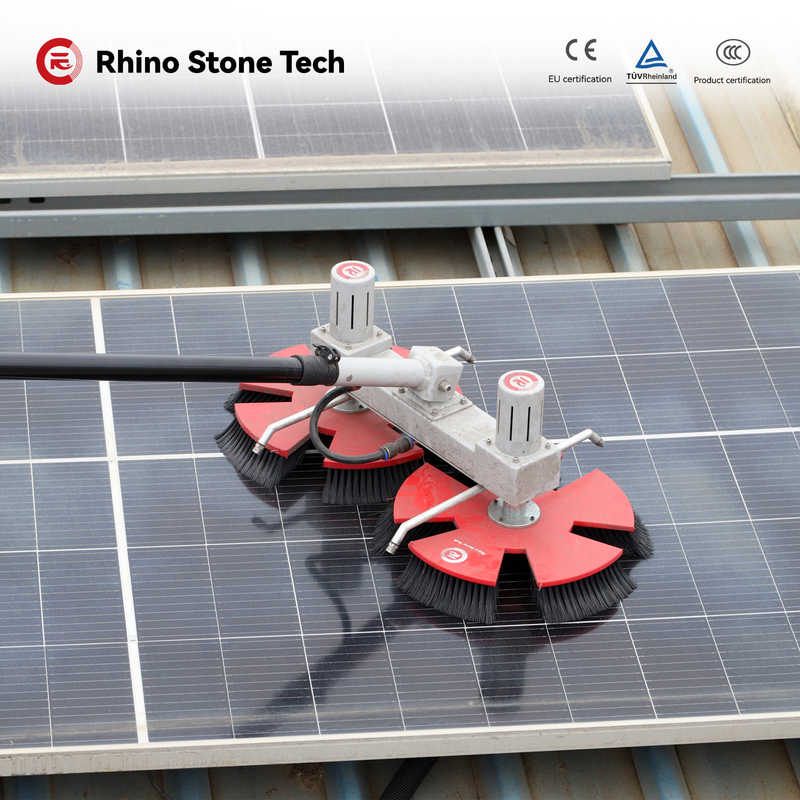

1.5-petal Brush Head Design:
With its unique 5-petal brush head, this product is lighter and more energy-saving than traditional disc-shaped designs. It significantly enhances cleaning effectiveness and is an ideal option for efficient one-person cleaning of photovoltaic panels.
2.Easy Operation with Dual-head Balanced Power:
Equipped with an innovative dual brushless motor drive system, it greatly lowers operating resistance. At the same time, it ensures the smooth operation of the dual discs, making the equipment easier and more flexible to operate, as well as labor-saving. This effectively improves cleaning efficiency.
3.Adjustable Brush Head Angle:
The dual-disc brush head is designed with a maximum adjustable angle of 90°. This allows users to adjust the brush head angle as needed and effectively expands the cleaning area, making it simpler to clean hard-to-reach hygiene dead spots.
4.Dual Anti-static Protection:
Anti-static nylon bristles are combined with anti-static carbon fiber telescopic rods to form a dual static elimination system. This system can effectively prevent the accumulation of static electricity, reduce the risk of discharge, and ensure the safety of workers. It is especially suitable for dry and dusty environments.
(Note: Two materials are available for the rod—carbon fiber and aluminum alloy. This anti-static feature only applies to the carbon fiber version.)
5.All-round Cleaning Modes:
It supports both dry and wet cleaning modes. It has efficient dry cleaning performance and strong cleaning capabilities when connected to a water source. With strong environmental adaptability, it can provide the best cleaning solution in any environment.
| Product Name | Double Disc Solar Cleaning Brush RHINO700-EH2 | ||||
| Parameter Item | Product Model | ||||
| Plug-in Version | Lithium Battery Version | Dual-use Version | |||
| Power Supply | AC95V~264V;DC24V | Lithium Battery | AC95V~264V;DC24V or Lithium Battery |
||
| Motor Type | Brushless Motor | ||||
| Motor Speed | 360RPM | ||||
| Motor Voltage | DC 24V | ||||
| Telescopic Rod Material | Carbon Fiber | Aluminum Alloy | |||
| Telescopic Rod Wall Thickness | 1.2mm | 1mm | |||
| Number of Section | 3.6m | 2 | 3.6m | 3 | |
| 5.4m | 3 | 5.4m | 4 | ||
| 7.5m | 4 | 7.5m | 5 | ||
| Water Pipe Length | 20m (can be customized) | ||||
| Brush Hair Material | Anti-Static Nylon Yarn | ||||
| Cleaning Width | 690mm | ||||
| Lithium Battery Voltage | 24V | ||||
| Lithium Battery Capacity | 30AH | ||||
| Lithium Battery Charging Time | 4~6H | ||||
| Lithium Battery Life Per Full Charge | 3~3.5H | ||||
![]()
![]()
![]()
![]()
![]()
![]()
